Description

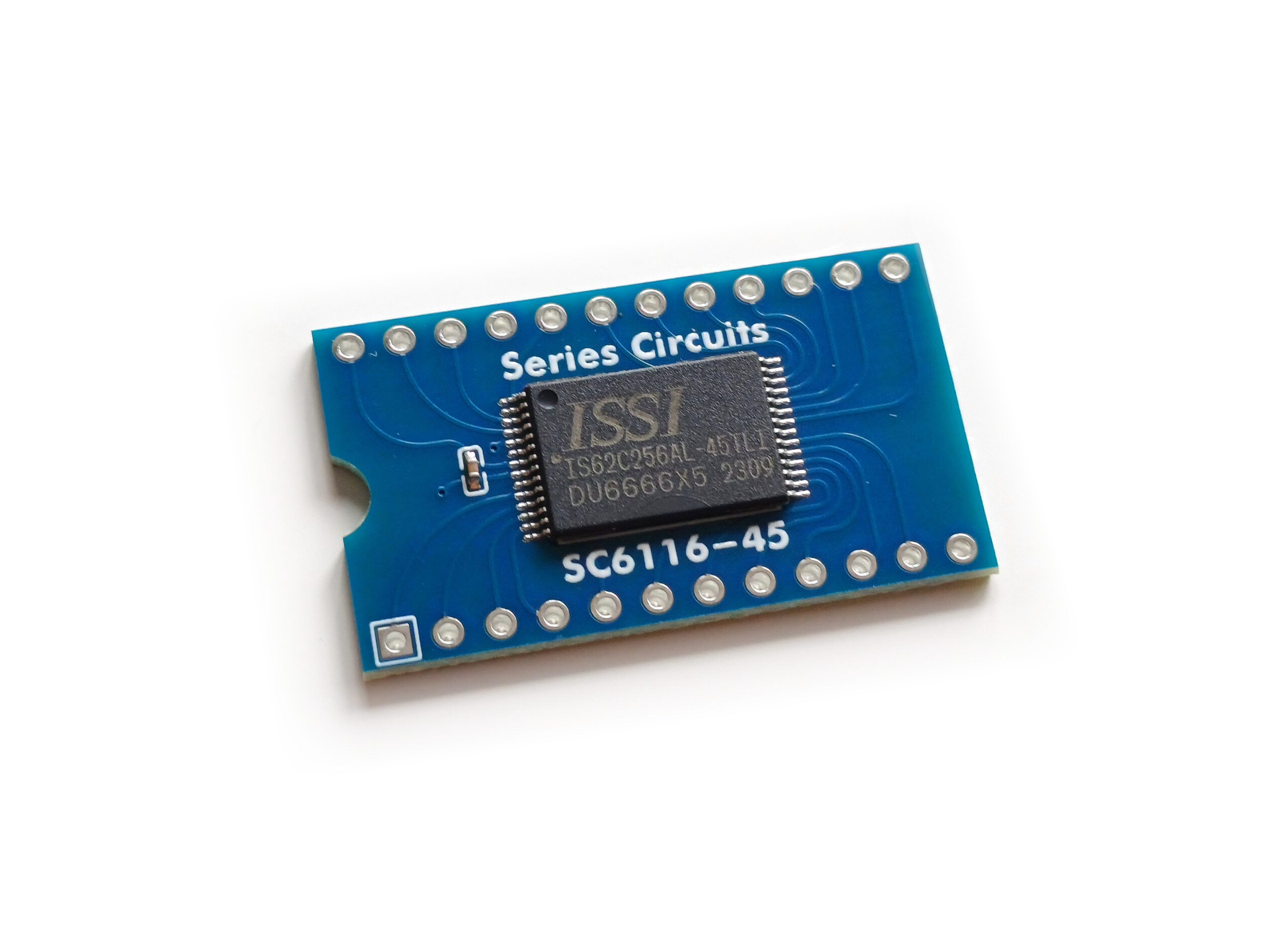

The SC6116-45 is a drop-in replacement for 2K x 8 6116 SRAM ICs (HM6116LP, TC5517CF, AM9128, MB8416, CY6116A, etc.). It can be used as a substitute for all 6116 SRAM ICs in DIP-24 package that have an access time greater than or equal to 45ns.
Please see the technical document for more details and a pinout diagram.
The 6116 is used as RAM in many vintage synthesizers, computers, drum machines, sequencers, pin ball machines, and more. Some examples are:
- EMU Emulator II
- Korg Poly-800
- Lexicon PCM-70
- Oberheim DMX
- Oberheim DX
- Oberheim Xpander (Japanese Version)
- Oxford OSCar
- PPG Wave 2.3
- Roland A-50
- Roland A-80
- Roland D-50
- Roland Juno-106/106S/HS-60
- Roland Jupiter-6
- Roland JX-3P
- Roland JX-8P
- Roland JX-10
- Roland MK-60
- Roland MK-80
- Roland MKS-20
- Roland MKS-30
- Roland MKS-70
- Roland P-330
- Roland RD-300S
- Roland TR-707
- Sequential Circuits Prophet-600
- Sequential Circuits Prophet VS
- Sequential Circuits Six-Trak
- Siel Opera 6
- And many more…
Cross reference of alternate 6116 SRAM part numbers:
- 2016
- 5M5517
- AM9128
- BCM2116
- CDM6116
- CXK5816
- CY6116
- ET2128
- GM7628
- HM6116
- HM6116
- HM6516
- HN65728
- HY6116
- IDT6166
- LH5115
- LH5116
- LH5116
- M58725
- M5M5116
- M5M5117
- M5M5118
- MB8128
- MB8416
- MCM2016
- MCM4016
- MCM6116
- MCM65116
- MK2817
- MK4802
- MMC2116
- MSM2128
- MSM5128
- SCM2116
- SRM2016
- STC6116
- SY2128
- TC5516
- TC5517
- TC5517
- TC5518
- TMM2016
- TMS4016
- uPD4016
- uPD446
- V62V16
