Description

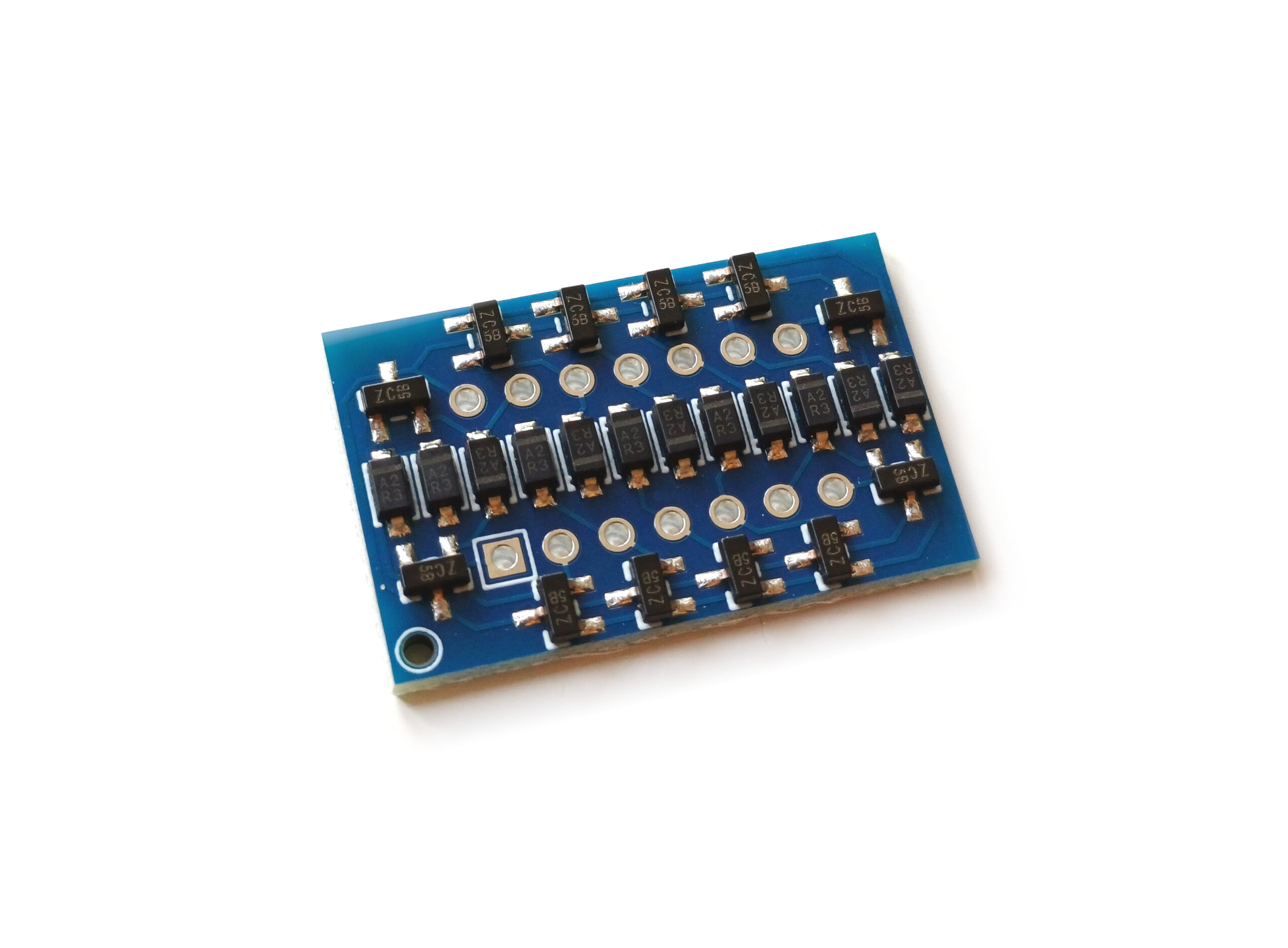

The SC0470 is a drop-in replacement for the TDA0470/0470D 12x transistor array with clamping diodes. The transistors are connected in parallel with a common collector to mimic the summed output of key mechanisms, this made it popular for early divide down based synthesizers and organs.
Please see the technical document for more details and a pinout diagram.
The TDA0470/0470D was used in the following synthesizers and organs:
- Armon K-300
- Armon P-300
- ARP Omni Mk1 & Mk2
- ARP Quadra
- ARP Solus
- ARP String Ensemble
- CRB Diamond 702/706/707/709/720-L/721-L
- Crumar 2002
- Crumar 920
- Crumar Accoder N
- Crumar T1
- Crumar T2
- Elka Concorde 402/602
- Elka X-605
- Farfisa 251/252/255/257/259
- Farfisa 5230/5240/5250/6290
- Farfisa CH-32
- Farfisa Doria
- Farfisa Pergamon
- Farfisa Professional 88/110
- Farfisa Soundmaker
- Farfisa Syntaccordion
- Farfisa Syntorchestra/Synthorchestra 4
- Hohner Vox II
- Jen Carousel C-450
- Solina String Ensemble
- Viscount Domus 4
- Viscount Domus 5
